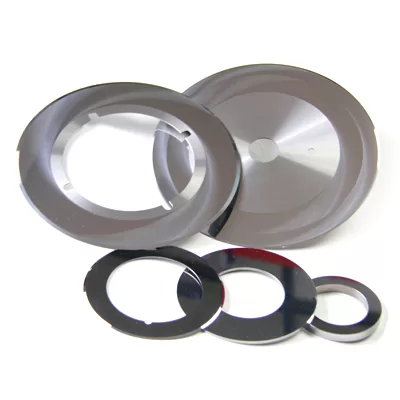

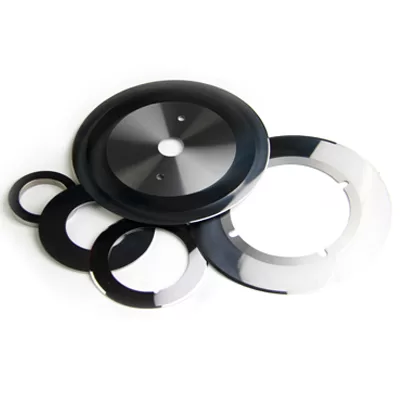

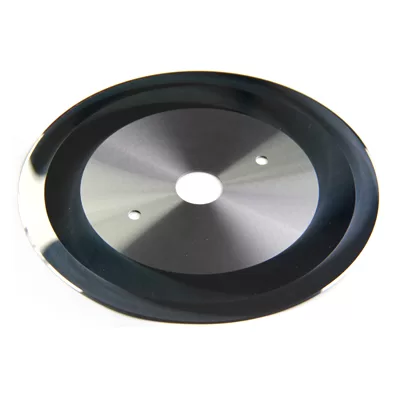

Tungsten Carbide Slitter Blades / Slitting Knives
What is a tungsten carbide slitter blade / slitting knife?
Essentially, it is a slitting blade made using tungsten carbide manufacturing.
Tungsten Carbide is an exceptionally durable and tough material, featuring high hardness, wear resistance, flexural strength, and corrosion resistance. A special polishing process is employed to mirror-polish the cutting edge, which helps to minimize friction between the tool and the processed product. It is an essential tool for slitting machines.
Tungsten Carbide slitter blade grade selection
Due to the diverse materials that require slitting, we have formulated a range of carbide grades that are suited to specific material types and applications.
Please refer to the table displayed below for more information.
| Grade | Grain Size μm | Co% | Density g/cm³ | Hardness HRA | TRS (MPa) | Application |
|---|---|---|---|---|---|---|
| YA25UF | Super fine | 12 | 14.00-14.20 | 92.4-93.0 | 3500 | Corrugated board, Cardboard, Leather, Composite materials |
| YA30K | Sub-fine | 15 | 14.00-14.10 | 88.5-89.0 | 3200 | Nonferrous metals |
| YA05U | Sub-fine | 6 | 14.75-15.00 | 92.8-93.2 | 2500 | Cardboard, optical fiber, leather |
| YA10U | Sub-fine | 8 | 14.60-14.80 | 92.0-92.5 | 2500 | Composite materials |
| YA30U | Sub-fine | 15 | 13.85-14.00 | 89,7-90.2 | 3200 | Cardboard |
| YA20U | Sub-fine | 10 | 14.35-14.50 | 91.4-91.8 | 3200 | Cardboard, Chemical fiber, Optical fiber, leather |
| YA26U | Sub-fine | 13 | 14.00-14.10 | 90.4-90.8 | 3500 | Corrugated board, Battery pole pieces |
| YA35M | Fine | 18 | 13.75-13.85 | 86.0-86.5 | 3200 | Sheet metal |
| YA25K | Fine | 12 | 14.20-14.40 | 89.5-90.0 | 3300 | Plastics, Paper |
| YA05M | Medium | 6 | 14.90-15.00 | 90.9-91.3 | 2400 | Film |
| YA15M | Medium | 9 | 14.55-14.70 | 89.7-90.2 | 2800 | Asbestos |
| YA25M | Medium | 12 | 14.20-14,40 | 88.5-89.0 | 3000 | Plastics |
| YA30M | Medium | 15 | 14.00-14.10 | 87.2-87.6 | 3000 | Paper, Nonferrous metals |
Tungsten Carbide slitter blade dimensions (reference)
OD 20–340 × ID 3–280 × T 1.6–30 mm
Tolerances of carbide slitting blades (reference)
OD(mm) | ID(mm) | T (mm) | Flatness (mm) | Surface Roughness | Concentricity |
|---|---|---|---|---|---|
| +0.2/-0.2 | +0.01/+0.03 | +0.001/-0.002 | 0.005 | Ra0.1-0.2μm | 0.05 |
Application of Tungsten Carbide Slitter Circular Blade
Main application industries: lithium battery pole piece, magnetic tape, adhesive tape products, film, rubber, copper foil, aluminum foil, non-woven fabric, composite packaging materials, cigarettes and other high-precision slitting industry.
Tungsten carbide slitting blade has a wide range of applications and can be used in many fields such as pharmaceuticals, food, electronics, communications, home appliances and so on.
Slitter blade made of Tungsten Carbide can not only improve the production efficiency, but also improve the quality of products. It is therefore an essential industrial cutting tool with a wide range of applications.
#Metal Foil Slitter Blade #Lithium Battery Pole Blade Slitter Blade #Corrugated Precision Slitter Blade #Carrier Tape Slitter Blade
Analysis Of Typical
Problems Of Corrugated Board Slitting Blade
A. The hardness of the blade and corrugated board might not match.
A. …may cause this problem and may even break the blades.
B. A collision with hard objects may cause the chips on the cutting edge.
A. Incorrect assembly — e.g., a deformed flange plate or improper tightening — can break the blades.
B. Unstable swing grinding wheels break the blades; please check the bearings of the grinding wheels.
C. The problem may be caused by collision with other hard objects.
A. Please check the cutting edge of your blade. Is the cutting edge sharp enough?
B. The corrugated board is too wet.
A. Is the grain size of the grinding wheel adequate?
A grinding wheel with too coarse a grain size shortens blade life.
B. Excessive grinding: the grinding interval is too short or the grinding pressure is too high.
Contact us
We are always ready to answer your questions about carbide cutting tools, grades, materials, performance, how to buy, etc.
Frequently Asked Questions
Which slitter blade sizes do you supply?
Common OD, ID and thickness combinations for metal slitting lines; custom sizes to drawing.
How is sharpness and edge quality controlled?
Blades are precision ground with controlled edge finish for clean slit edges and long regrind intervals.
Can you supply matched sets?
Yes — matched male/female blade sets with controlled OD and thickness matching are available.
Do you support custom sizes for slitter blades?
Yes. We produce to your drawings (PDF, DWG or STEP). Send specifications and our engineers will confirm feasibility and provide a quote within 24 hours.
What is the typical lead time?
Standard items are usually shipped in 7–15 days. Custom blades depend on complexity and are confirmed with the quotation.
