Carbide Insert Blanks for Turning & Milling

20+ Years in the Cemented Carbide IndustryFactory-Direct Pricing, No MiddlemenCustom & OEM Made to Your DrawingsFast Sampling Test Samples Before Volume Orders

Custom Insert Blanks

Custom carbide insert blanks are available for turning, threading, grooving, cut-off, drilling, reaming and milling. Our cutting tools are designed for both metal cutting and non-metallic applications.

We specialize in producing carbide and cermet near-net-shape inserts and replaceable bit blanks. Our products are of high quality and come in consistent sizes. We offer a wider selection of insert blank materials to enhance productivity and throughput.

With our advanced and efficient manufacturing techniques, we can provide you with a diverse range of complex geometries and grinding options.

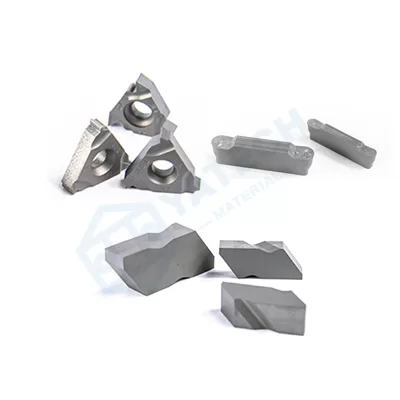

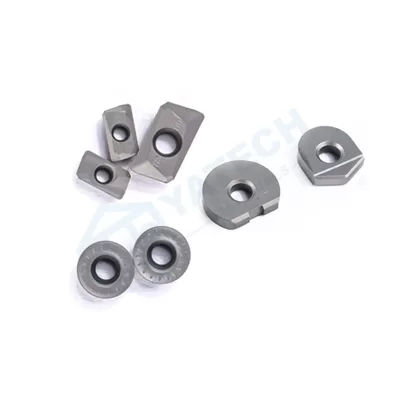

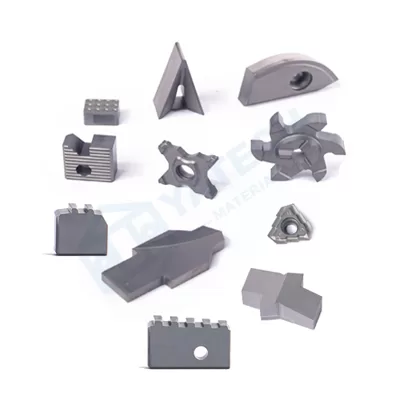

Cutting tool insert blanks, carbide tool blanks

Standard and customized insert blanks
Multiple grades are available
Strict product confidentiality (NDA available)

Carbide blank suppliers in China


ISO Class	Grade	Average WC Grain Size	Industry Classification	Cobalt content (wt%)	Hardness (HRA)	Density (g/cm³)	TRS (MPa) min.	Recommended Coating			Application
								Uncoated	CVD	PVD	Turning	Threading	Drilling	Milling	Grooving	Round Tools	STB & Tips
K	YK05	Fine	K20-K35 M20-M40	6.0	91.8	14.95	2720	●	●	●	☆			☆	☆		☆
	YK10H	medium	K20-K40	6.0	91.1	14.95	2300	●	●	●	☆			☆	☆		☆
	YK30H	medium	K25-K45	8.0	90.1	14.74	2800	●	●	●	☆			☆	☆		☆
	YU10	Micro Fine	K05-K20 M10-M20	6.1	93.0	14.83	2700	●		●	☆			☆			☆
	YU10UF	Ultra Fine	H05-H10	6.2	93.9	14.75	3500	●		●	☆			☆
	YU20	Micro Fine	K20-K35 M25-M40	10.3	91.7	14.40	3500	●		●	☆	☆	☆	☆	☆	☆	☆
	YU20F	Ultra Fine	K15-K25 M10-M25	10.3	92.1	14.38	3800	●		●	☆	☆	☆	☆	☆	☆
	YU25UF	Ultra Fine	K05-K10 M05-M15 H05-H15	12.0	92.5	14.11	4200	●		●	☆			☆		☆
	YU092	Ultra Fine	H05-H10	9.0	93.5	14.40	4100	●		●	☆			☆
M	YM15	Micro Fine	M05-M15	10.5	91.8	14.34	2700	●		●	☆			☆
	YM25	Fine	M15-M35	9.2	90.9	14.44	2500	●	●	●	☆			☆	☆
	YM40	medium	M25-M40	12.0	90.6	14.15	3200	●	●	●	☆			☆	☆
P	YP10	medium	P05-P25	6.0	91.5	13.86	2300	●	●	●	☆				☆
	YP25G	medium	P15-P35	7.6	90.6	13.95	2700		●		☆				☆

Cutting Tool Insert Blanks Made to Your Specification

Yatech carbide insert blanks are the starting point for turning, threading, grooving, parting and milling inserts. Blanks are pressed and sintered to your geometry, then ground on critical faces with tight thickness and tolerance control so your edge preparation and coating processes run consistently.

Geometry: standard ISO shapes or fully custom profiles per drawing
Grades: substrate grades optimized for PVD or CVD coating and your workpiece material
Tolerances: precision ground thickness for consistent coating and edge prep

From standard inserts to special profiles, we support both insert manufacturers and end users with short lead times and stable quality.

Frequently Asked Questions

Expand all

Which insert shapes and sizes can you supply?

Standard ISO indexable shapes such as CNMG, DNMG, SNMG, TNMG and VNMG, plus fully custom profiles produced to your drawing, including chipbreaker forms that are pressed rather than ground.

Are the blanks sintered, pre-ground or finished?

All three routes are available: as-sintered blanks for tool makers who grind in house, pre-ground blanks to cut your grinding steps, and finished coated inserts where you need a ready-to-use tool.

What tolerance can you hold on insert blanks?

Pressed blanks are supplied within standard sintered tolerances; where the insert is ground after sintering we work to the tolerances on your drawing. Send the drawing and our engineers will confirm the achievable class for your geometry.

Can you match my existing pressing die geometry?

Yes. Send the drawing or a sample of the current insert and we will quote blanks that fit your existing pressing and grinding route, so your tooling does not have to change.

What is the MOQ and can I order samples first?

There is no fixed MOQ for standard shapes. Sample orders are welcome so you can verify geometry and grade before volume production; shipping is freight collect.
